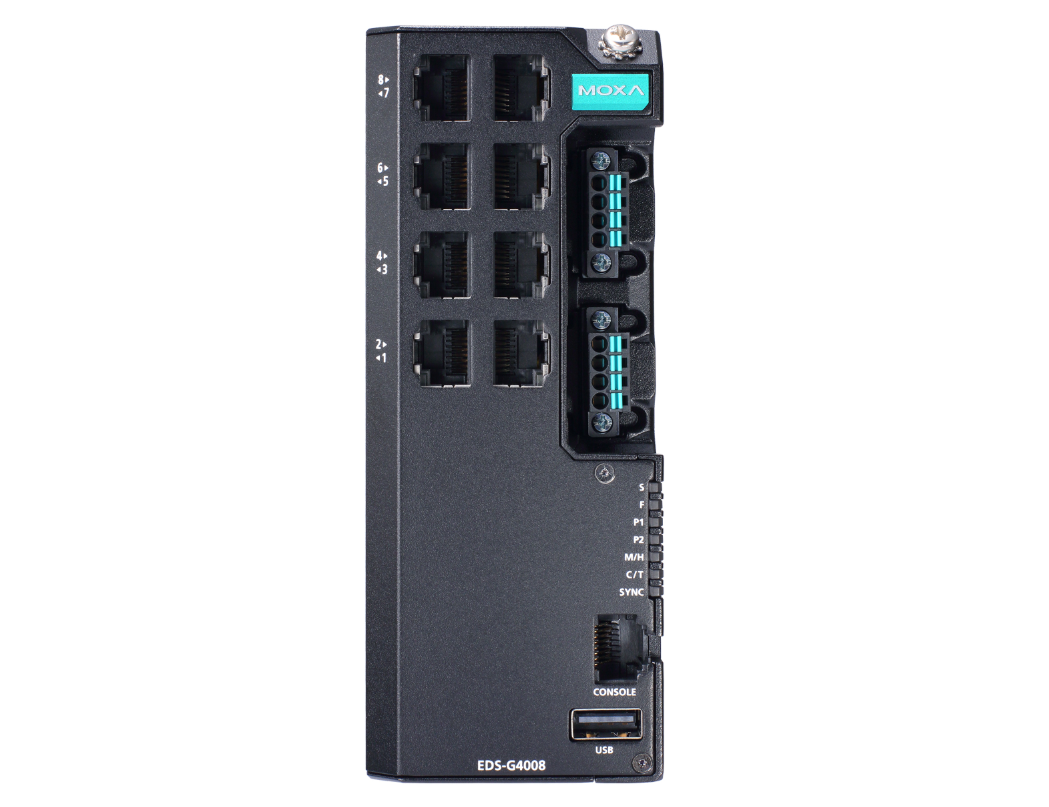

MOXA - EDS-G4008-LV-T

Features

• Turbo Ring and Turbo Chain (recovery time < 50 ms @ 250 switches), and RSTP/STP for network redundancy
• Wide range of power input options for flexible deployment
• Compact and flexible housing design to fit into confined spaces
• Supports MXstudio for easy, visualized industrial network management
• IEC 62443-4-2 Security Level 2 certified
• Marine cybersecurity certified (IACS UR E27 Rev.1, IEC 61162-460 Ed. 3.0 for switch role)

Specifications

• 10/100/1000BaseT(X) Ports (RJ45 connector):
  • 8
  • Auto MDI/MDI-X connection
  • Auto negotiation speed
  • Full/Half duplex mode
• Standards:
  • IEEE 802.3 for 10BaseT
  • IEEE 802.3u for 100BaseT(X)
  • IEEE 802.3ab for 1000BaseT(X)
  • IEEE 802.3x for flow control
  • IEEE 802.3ad for Port Trunk with LACP
  • IEEE 802.1Q for VLAN Tagging
  • IEEE 802.1D-2004 for Spanning Tree Protocol
  • IEEE 802.1w for Rapid Spanning Tree Protocol
  • IEEE 802.1p for Class of Service
  • IEEE 802.1X for authentication

• Industrial Protocols:
  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device
• Management:
  • IPv4/IPv6
  • Flow control
  • Back Pressure Flow Control
  • DHCP Server/Client
  • ARP
  • RARP
  • LLDP
  • Port Mirroring (SPAN, RSPAN)
  • Linkup Delay
  • SMTP
  • SNMP Trap
  • SNMP Inform
  • SNMPv1/v2c/v3
  • RMON
  • TFTP
  • SFTP
  • HTTP
  • HTTPS
  • Telnet
  • Syslog
  • Private MIB
  • Fiber check
• Filter:
  • GMRP
  • GVRP
  • GARP
  • 802.1Q VLAN
  • IGMP Snooping v1/v2/v3
  • IGMP Querier
• Redundancy Protocols:
  • STP
  • RSTP
  • Turbo Ring v2
  • Turbo Chain
  • Ring Coupling
  • Dual-Homing
  • Link Aggregation
  • MRP
  • MSTP
• Security:
  • Broadcast storm protection
  • Rate Limit
  • Trust access control
  • Static Port Lock
  • MAC Sticky
  • HTTPS/SSL
  • SSH
  • RADIUS
  • TACACS+
  • Access control list
  • Login and Password Policy
  • DHCP Snooping
• Time Management:
  • SNTP
  • NTP Server/Client
  • NTP Authentication
  • IEEE 1588v2 PTP (hardware-based)
  • Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
• Protocols:
  • IPv4/IPv6
  • TCP/IP
  • UDP
  • ICMP
  • ARP
  • RARP
  • TFTP
  • DNS
  • NTP Client
  • DHCP Server
  • DHCP Client
  • 802.1X
  • QoS
  • HTTPS
  • HTTP
  • Telnet
  • SMTP
  • SNMPv1/v2c/v3
  • RMON
  • Syslog
• MIB:
  • P-BRIDGE-MIB
  • Q-BRIDGE-MIB
  • IEEE8021-SPANNING-TREE-MIB
  • IEEE8021-PAE-MIB
  • IEEE8023-LAG-MIB
  • LLDP-EXT-DOT1-MIB
  • LLDP-EXT-DOT3-MIB
  • SNMPv2-MIB
  • RMON MIB Groups 1, 2, 3, 9

• MAC Table Size:
  • 16 K
• Jumbo Frame Size:
  • 9.216 KB
• Max. No. of VLANs:
  • 256
• VLAN ID Range:
  • VID 1 to 4094
• IGMP Groups:
  • 512
• Priority Queues:
  • 4
• Packet Buffer Size:
  • 1 MB

• LED Indicators:
  • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

• Console Port:
  • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

• USB Connector:
  • USB Type A (Reserved)

• Alarm Contact Channels:
  • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
• Digital Input Channels:
  • 1
• Digital Inputs:
  • +13 to +30 V for state 1
  • -30 to +3 V for state 0
  • Max. input current: 8 mA
• Buttons:
  • Reset button

• DIP Switches:
  • Turbo Ring, Master, Coupler, Reserve

• Connection:
  • 2 removable 4-contact terminal block(s)
• Pre-installed Power Module:
  • -LV/-LV-T models: PWR-100-LV
  • -HV/-HV-T models: PWR-105-HV-I
• Note:
  • The EDS-G4008 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
  • For example:
    EDS-G4008-T + PWR-100-LV = EDS-G4008-LV-T
    EDS-G4008-T + PWR-105-HV-I = EDS-G4008-HV-T
  • If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4008-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-G4008-HV-T.
• Input Voltage:
  • -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
  • -HV/-HV-T models: 110/220 VDC/VAC, Single input
• Operating Voltage:
  • -LV/-LV-T models: 9.6 to 60 VDC
  • -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
• Input Current:
  • -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
  • -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
• Overload Current Protection:
  • Supported
• Reverse Polarity Protection:
  • Supported
• Power Consumption (Max.):
  • EDS-G4008-LV(-T) models: 8.84 W
  • EDS-G4008-HV(-T) models: 10.73 W

• IP Rating:
  • IP40
• Dimensions:
  • 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
• Weight:
  • 859.5 g (1.89 lb)
• Installation:
  • DIN-rail mounting
  • Wall mounting (with optional kit)
• Housing:
  • Metal

• Operating Temperature:
  • Standard models: -10 to 60°C (14 to 140°F)
  • Wide temp. models: -40 to 75°C (-40 to 167°F)
• Storage Temperature (package included):
  • -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity:
  • 5 to 95% (non-condensing)

• Cybersecurity:
  • IEC 62443-4-2 Security Level 2
  • IEC 61162-460 (switch role)
• Safety:
  • UL 61010-2-201
  • EN 62368-1 (LVD)
• EMC:
  • EN 55032/35
  • EN 61000-6-2/-6-4
• EMI:
  • CISPR 32, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF
• Maritime:
  • -LV/-LV-T models: DNV, ABS, NK, LR
• Vibration:
  • IEC 60068-2-6
• Shock:
  • IEC 60068-2-27
• Freefall:
  • IEC 60068-2-32
• Railway:
  • EN 50121-4
• Traffic Control:
  • NEMA TS2
• Power Substation:
  • IEC 61850-3
  • IEEE 1613 Class 1
• Hazardous Locations:
  • -LV/-LV-T models:
    • ATEX
    • IECEx
    • Class I Division 2

• Time:
  • EDS-G4008-LV/-LV-T models: 1,098,085 hrs
  • EDS-G4008-HV/-HV-T models: 511,204 hrs
• Standards:
  • Telcordia Standard SR-332
