MOXA - EDS-G4012-8P-4QGS-LVA

8G-port full Gigabit managed Ethernet switches
Skip image gallery

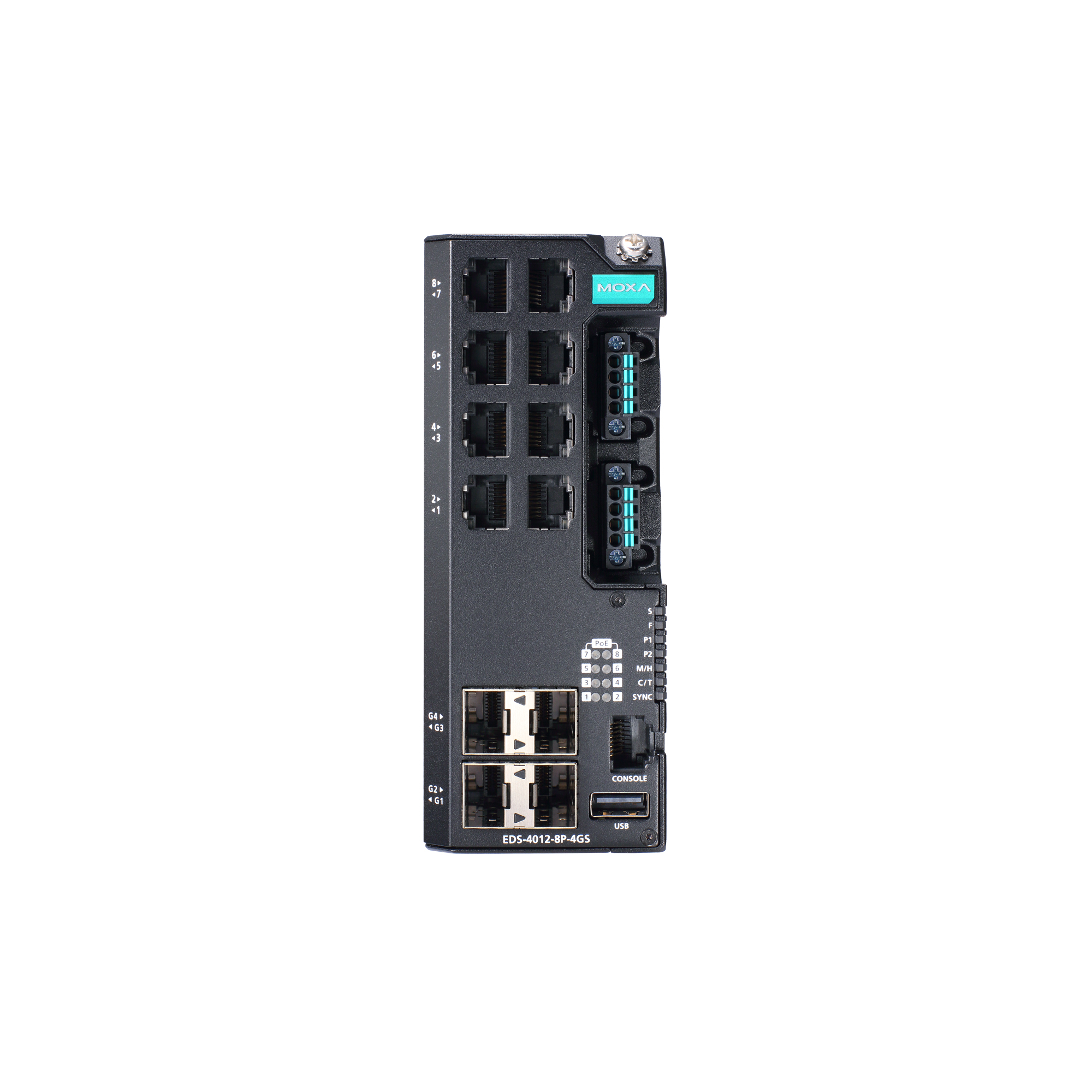

MOXA - EDS-G4012-8P-4QGS-LVA
MOXA - EDS-G4012-8P-4QGS-LVA
Listprice:

€2,957.00*

MPN: EDS-G4012-8P-4QGS-LVA
Article number: 14664
Questions? We will be happy to advise you! → Or via our contact form.

Product information "MOXA - EDS-G4012-8P-4QGS-LVA"

The EDS-4012 Series is a range of 12-port managed Fast Ethernet switches with the option for four 1 Gbps fiber-optic uplink ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.

Redundant Ethernet technologies such as Turbo Ring, Turbo Chain, and RSTP/STP increase the reliability of your system and improve the availability of your network backbone. The EDS-4012 Series is designed specifically for demanding applications such as video and process monitoring, ITS, and DCS systems, all of which can benefit from a scalable backbone.

EDS-(G)4000 Series models are IEC 62443-4-2 Security Level 2 certified, helping our customers meet the compliance requirements of secure industrial network design.

The EDS-G4012-8P-4QGS-LVA is a managed industrial Ethernet switch with eight Gigabit 802.3bt PoE ports, four 1/2.5 Gigabit SFP ports, and redundant 48 VDC power inputs.

PACKAGE CONTENTS

  • 1 x EDS-4012 Series switch
  • 1 x quick installation guide
  • 1 x product notice
  • 1 x product certificates of quality inspection
Certifications: IEC-62443
IP Level: IP40
Mounting: DIN-Rail
Power Supply: 48V DC
Temperature Range: Standard Temperature Range
Management: Layer 2 managed

Features

  • Support for IEEE 802.3bt PoE for up to 90 W output per port
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches)1, and RSTP/STP for network redundancy
  • Wide range of power input options for flexible deployment
  • Compact and flexible housing design to fit into confined spaces
  • Supports MXstudio for easy, visualized industrial network management
  • IEC 62443-4-2 Security Level 2 certified
  • Marine cybersecurity certified (IACS UR E27 Rev.1, IEC 61162-460 Ed. 3.0 for switch role)

Specifications

Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector):
    • EDS-4012-4GS-LV/-HV/-T models: 8
    • EDS-4012-4GC-LV/-HV/-T models: 8
    • Auto negotiation speed
    • Full/Half duplex mode
    • Auto MDI/MDI-X connection
  • PoE Ports (10/100BaseT(X), RJ45 connector):
    • EDS-4012-8P-4GS-LVA/-LVB/-T models: 8
  • 100/1000BaseSFP Ports:
    • EDS-4012-4GS-LV/-HV/-T models: 4
    • EDS-4012-8P-4GS-LVA/-LVB/-T models: 4
  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP):
    • EDS-4012-4GC-LV/-HV/-T models: 4
  • Standards:
    • IEEE 802.3 for 10BaseT
    • IEEE 802.3u for 100BaseT(X) and 100BaseFX
    • IEEE 802.3ab for 1000BaseT(X)
    • IEEE 802.3z for 1000BaseX
    • IEEE 802.3x for flow control
    • IEEE 802.3ad for Port Trunk with LACP
    • IEEE 802.1Q for VLAN Tagging
    • IEEE 802.1D-2004 for Spanning Tree Protocol
    • IEEE 802.1w for Rapid Spanning Tree Protocol
    • IEEE 802.1p for Class of Service
    • IEEE 802.1X for authentication

Ethernet Software Features
  • Industrial Protocols:
    • EtherNet/IP
    • Modbus TCP
    • PROFINET IO Device
  • Management:
    • IPv4/IPv6
    • Flow control
    • Back Pressure Flow Control
    • DHCP Server/Client
    • ARP
    • RARP
    • LLDP
    • Fiber check
    • Port Mirroring (SPAN, RSPAN)
    • Linkup Delay
    • SMTP
    • SNMP Trap
    • SNMP Inform
    • SNMPv1/v2c/v3
    • RMON
    • TFTP
    • SFTP
    • HTTP
    • HTTPS
    • Telnet
    • Syslog
    • Private MIB
  • Filter:
    • GMRP
    • GVRP
    • GARP
    • 802.1Q VLAN
    • IGMP Snooping v1/v2/v3
    • IGMP Querier
  • Redundancy Protocols:
    • STP
    • RSTP
    • Turbo Ring v2
    • Turbo Chain
    • Ring Coupling
    • Dual-Homing
    • Link Aggregation
    • MRP
    • MSTP
  • Security:
    • Broadcast storm protection
    • Rate Limit
    • Trust access control
    • Static Port Lock
    • MAC Sticky
    • HTTPS/SSL
    • SSH
    • RADIUS
    • DHCP Snooping
    • TACACS+
    • Login and Password Policy
    • Access control list
  • Time Management:
    • SNTP
    • NTP Server/Client
    • NTP Authentication
    • IEEE 1588v2 PTP (hardware-based)
    • Supported power profiles: IEEE 1588 Default 2008, IEC 61850-9-3-2016, IEEE C37.238-2017
  • Protocols:
    • IPv4/IPv6
    • TCP/IP
    • UDP
    • ICMP
    • ARP
    • RARP
    • TFTP
    • DNS
    • NTP Client
    • DHCP Server
    • DHCP Client
    • 802.1X
    • QoS
    • HTTPS
    • HTTP
    • Telnet
    • SMTP
    • SNMPv1/v2c/v3
    • RMON
    • Syslog
  • MIB:
    • P-BRIDGE-MIB
    • Q-BRIDGE-MIB
    • IEEE8021-SPANNING-TREE-MIB
    • IEEE8021-PAE-MIB
    • IEEE8023-LAG-MIB
    • LLDP-EXT-DOT1-MIB
    • LLDP-EXT-DOT3-MIB
    • SNMPv2-MIB
    • RMON MIB Groups 1, 2, 3, 9

Switch Properties
  • MAC Table Size:
    • 16 K
  • Jumbo Frame Size:
    • 9.216 KB
  • Max. No. of VLANs:
    • 256
  • VLAN ID Range:
    • VID 1 to 4094
  • IGMP Groups:
    • 512
  • Priority Queues:
    • 4
  • Packet Buffer Size:
    • 1 MB

LED Interface
  • LED Indicators:
    • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC

Serial Interface
  • Console Port:
    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)

USB Interface
  • USB Connector:
    • USB Type A (Reserved)

Input/Output Interface
  • Alarm Contact Channels:
    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC
  • Digital Input Channels:
    • 1
  • Digital Inputs:
    • +13 to +30 V for state 1
    • -30 to +3 V for state 0
    • Max. input current: 8 mA
  • Buttons:
    • Reset button

DIP Switch Configuration
  • DIP Switches:
    • Turbo Ring, Master, Coupler, Reserve

Power Parameters
  • Connection:
    • 2 removable 4-contact terminal block(s)
  • Pre-installed Power Module:
    • -LV/-LV-T models: PWR-100-LV
    • -HV/-HV-T models: PWR-105-HV-I
    • -LVA/-LVA-T models: PWR-101-LV-BP-I
    • -LVB/-LVB-T models: PWR-103-LV-VB-I
  • Note:
    • The EDS-4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.
    • For example:
      EDS-4012-4GS-T + PWR-100-LV = EDS-4012-4GS-LV-T
      EDS-4012-4GS-T + PWR-105-HV-I = EDS-4012-4GS-HV-T
    • If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-4012-4GS-LV-T with the PWR-105-HV-I, refer to the specifications of the EDS-4012-4GS-HV-T.
  • Input Voltage:
    • -LV/-LV-T models: 12/24/48 VDC, Redundant dual inputs
    • -HV/-HV-T models: 110/220 VDC/VAC, Single input
    • -LVA/-LVA-T models: 48 VDC, Redundant dual inputs
    • -LVB/-LVB-T models: 12/24/48 VDC, Redundant dual inputs
  • Operating Voltage:
    • -LV/-LV-T models: 9.6 to 60 VDC
    • -HV/-HV-T models: 88 to 300 VDC, 85 to 264 VAC
    • -LVA/-LVA-T models: 44 to 57 VDC (>52 VDC for PoE+ output recommended)
    • -LVB/-LVB-T models: 12 to 57 VDC (>52 VDC for PoE+ output recommended)
  • Input Current:
    • -LV/-LV-T models: 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A
    • -HV/-HV-T models: 110-220 VAC, 50-60 Hz, 0.30-0.20 A or 110-220 VDC, 0.30-0.20 A
    • -LVA/-LVA-T models: 48 VDC, 5.42 A
    • -LVB/-LVB-T models: 12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A
  • Power Consumption (Max.):
    • EDS-4012-4GS-LV/-T models: 10.52 W
    • EDS-4012-4GS-HV/-T models: 12.22 W
    • EDS-4012-4GC-LV/-T models: 10.7 W
    • EDS-4012-4GC-HV/-T models: 13.35 W
    • EDS-4012-8P-4GS-LVA/-T models:
      • Without PoE: 13.34 W
      • With PoE: Max. 240 W for total PD power consumption @ 48 VDC input
    • EDS-4012-8P-4GS-LVB/-T models:
      • Without PoE: 15.32 W
      • With PoE:
      • Max. 180 W for total PD power consumption @ 48 VDC input
      • Max. 150 W for total PD power consumption @ 24 VDC input (Max. 120 W for -T model)
      • Max. 62 W for total PD power consumption @ 12 VDC input
  • Max. PoE Power Output per Port:
    • 90 W
  • Overload Current Protection:
    • Supported
  • Reverse Polarity Protection:
    • Supported

Physical Characteristics
  • IP Rating:
    • IP40
  • Dimensions:
    • 55 x 140 x 120 mm (2.17 x 5.51 x 4.72 in)
  • Weight:
    • 827 g (1.82 lb)
  • Installation:
    • DIN-rail mounting
    • Wall mounting (with optional kit)
  • Housing:
    • Metal

Environmental Limits
  • Operating Temperature:
    • Standard Models: -10 to 60°C (14 to 140°F)
    • Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature (package included):
    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity:
    • 5 to 95% (non-condensing)

Standards and Certifications
  • Cybersecurity:
    • IEC 62443-4-2 Security Level 2
    • IEC 61162-460 (switch role)
  • Safety:
    • UL 61010-2-201
    • EN 62368-1 (LVD)
  • EMC:
    • EN 55032/35
    • EN 61000-6-2/-6-4
  • EMI:
    • CISPR 32, FCC Part 15B Class A
  • EMS:
    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
    • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
    • IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
    • IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
    • IEC 61000-4-6 CS: 10 V
    • IEC 61000-4-8 PFMF
  • Maritime:
    • -LV/-LV-T, -LVB/-LVB-T models: DNV, ABS, NK, LR
  • Vibration:
    • IEC 60068-2-6
  • Shock:
    • IEC 60068-2-27
  • Freefall:
    • IEC 60068-2-32
  • Railway:
    • EN 50121-4
  • Traffic Control:
    • NEMA TS2
  • Power Substation:
    • IEC 61850-3
    • IEEE 1613 Class 1
  • Hazardous Locations:
    • -LV/-LV-T models:
      • ATEX
      • IECEx
      • Class I Division 2

MTBF
  • Time:
    • EDS-4012-4GC-LV/-T models: 1,036,336 hrs
    • EDS-4012-4GC-HV/-T models: 497,392 hrs
    • EDS-4012-4GS-LV/-T models: 874,838 hrs
    • EDS-4012-4GS-HV/-T models: 456,870 hrs
    • EDS-4012-8P-4GS-LVA/-T models: 799,780 hrs
    • EDS-4012-8P-4GS-LVB/-T models: 759,924 hrs
  • Standards:
    • Telcordia Standard SR-332
