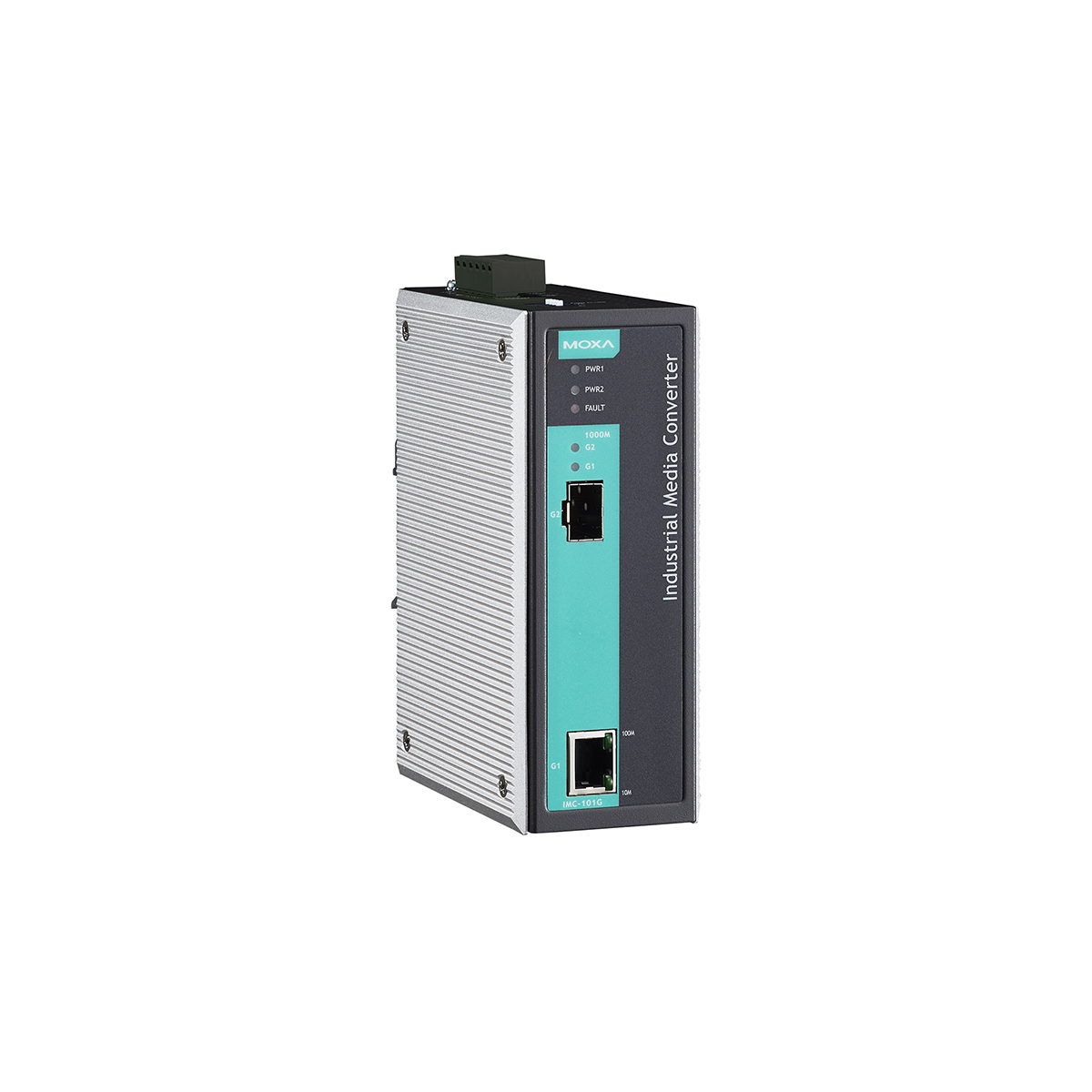

MOXA - IMC-101G-T
Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, -40 to 75°C operating temperature
MPN:
IMC-101G-T
Article number:
10870
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - IMC-101G-T"
The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.
Scope of delivery: MOXA - IMC-101G-T
Scope of delivery: MOXA - IMC-101G-T
| Isolation: | with isolation |
|---|---|
| Mounting: | DIN-Rail |
| Option: | Copper-to-FiberOptic |
| Power Supply: | External |
| Temperature Range: | -40°C to 75°C |
Features
- 10/100/1000BaseT(X) and 1000BaseSFP slot supported
- Link Fault Pass-Through (LFPT)
- Power failure, port break alarm by relay output
- Redundant power inputs
- -40 to 75°C operating temperature range (-T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
- More than 20 options available
Technical details
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 1
1000 Mbps fiber (SFP connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Power Parameters
Input Current: 200 mA @ 12 to 45 VDC
Input Voltage: 12 to 45 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 200 mA @ 12 to 45 VDC
Physical Characteristics
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g (1.39 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector): 1
1000 Mbps fiber (SFP connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Power Parameters
Input Current: 200 mA @ 12 to 45 VDC
Input Voltage: 12 to 45 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 200 mA @ 12 to 45 VDC
Physical Characteristics
Housing: Metal
Dimensions: 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight: 630 g (1.39 lb)
Installation: DIN-rail mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
