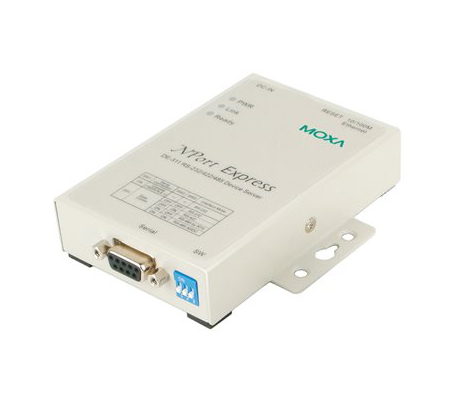

MOXA - NPort DE-311
1-port RS-232/422/485 device server with 10/100 Mbit/s Ethernet connection
Listprice:
€182.00*
Your price - Login
4 pieces available, delivery time In stock, available immediately
MPN:
DE-311
Article number:
10068
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - NPort DE-311"
The NPort DE-211 and DE-311 are 1-port serial device servers that support RS-232, RS-422, 4-wire RS-485 and 2-wire RS-485. The DE-211 supports 10 Mbit / s Ethernet connections and has a DB25 socket for the serial interface. The DE-311 supports 10/100 Mbps Ethernet connections and has a DB9 socket for the serial interface. Both device servers are ideal for applications involving information display panels, PLCs, flow meters, gas meters, CNC machines and biometric ID card readers.
Scope of delivery: Moxa NPort DE-311 universal serial device server, NPort Express quick installation guide for the DE-311, NPort documentation & software CD, mini-adapter.
Scope of delivery: Moxa NPort DE-311 universal serial device server, NPort Express quick installation guide for the DE-311, NPort documentation & software CD, mini-adapter.
| Connection: | 10 / 100-TX (RL45) |
|---|---|
| Power Supply: | External |
| Protocol: | RS 232 / 422 / 485 |
| Serial Ports: | 1 Port |
Features
- Serial 3-in-1 interface: RS-232, RS-422 or RS-485
- Various operating modes, including TCP server, TCP client, UDP, Ethernet modem and pair connection
- True COM / TTY drivers for Windows and Linux
- 2-wire RS-485 with patented automatic data direction control (ADDC®)
Technical details
Ethernet interface
Ethernet interface
- Number of ports: 1
- Magnetic isolation protection: 1.5 kV (built-in)
- 10BaseT (X) ports, RJ45 connector: Automatic MDI / MDI-X connection
- Setting options: Windows utility, Telnet console, serial console
- Management: ARP, BOOTP, DHCP client, IPv4, TCP / IP, Telnet, UDP, ICMP
- Windows Real COM drivers: Windows 95/98 / ME / NT / 2000, Windows XP / 2003 / Vista / 2008/7/8 / 8.1 / 10 (x86 / x64), Windows 2008 R2 / 2012/2012 R2 / 2016/2019 (x64), Windows Embedded CE 5.0 / 6.0, Windows XP Embedded
- Linux Real TTY drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x and 5.x.
- Fixed TTY drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X.
- Android API: Android 3.1.x and higher
- Connector: DB9 female
- Serial standards: RS-232, RS-422, RS-485
- Number of ports: 1
- Baud rate: Supports standard baud rates (unit = bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4 k
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, even, odd, space, mark
- Sequence control: None, RTS / CTS, XON / XOFF
- RS-485 data direction control: ADDC (automatic data direction control)
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx +, Tx-, Rx +, Rx-, GND
- RS-485-4w: Tx +, Tx-, Rx +, Rx-, GND
- RS-485-2w: Data +, Data-, GND
- Input current: 300 mA at 9 VDC, 150 mA at 24 VDC
- Input voltage: 9 to 30 VDC
- Alarm tools: Built-in buzzer and RTC (real time clock)
- Housing: Metal
- Dimensions (with ears): 90.2 x 100.4 x 22 mm (3.55 x 3.95 x 0.87 in.)
- Dimensions (without ears): 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in.)
- Weight: 480 g
- Operating temperature: 0 to 55 ° C (32 to 131 ° F)
- Storage temperature: -40 to 75 ° C (-40 to 167 ° F)
- Relative humidity: 5 to 95% (non-condensing)
