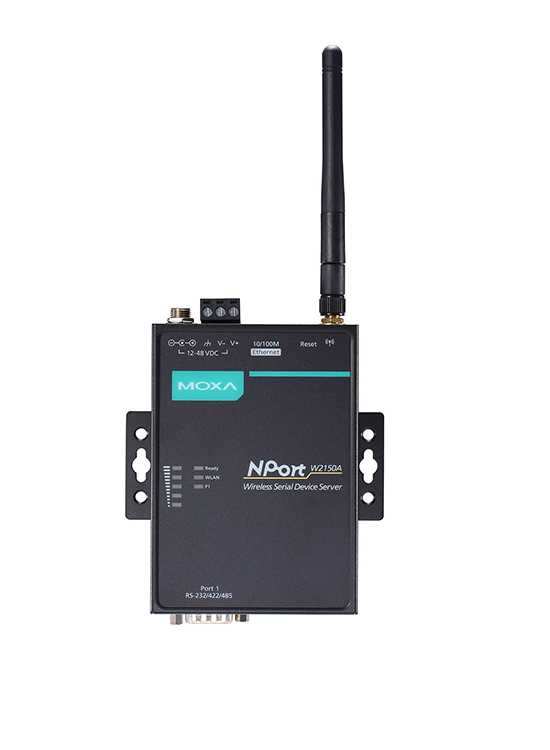

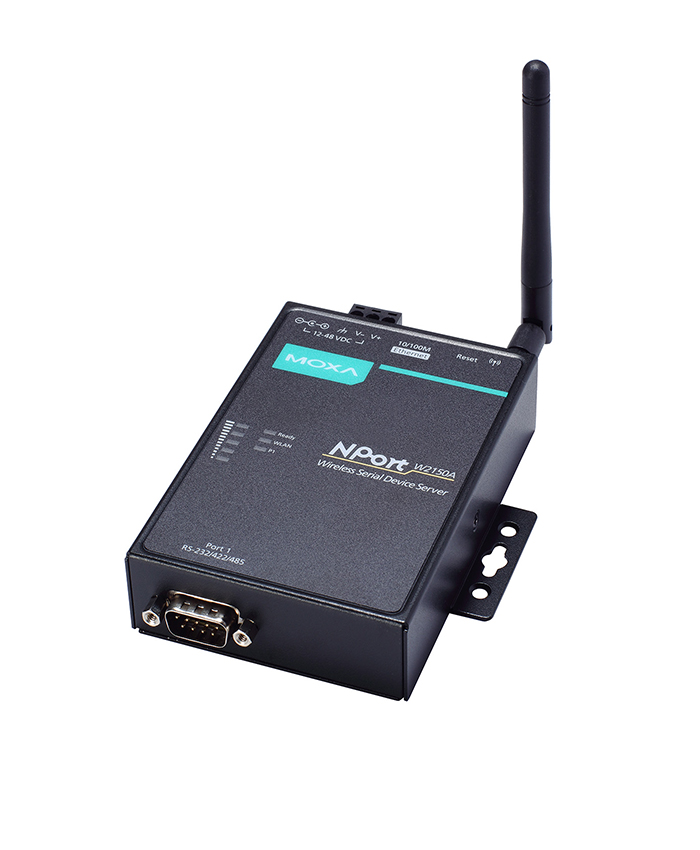

MOXA - NPort W2150A-EU
1-port wireless device server, 3-in-1, 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, 0 to 55°C operating temperature, with EU plug
MPN:
NPort W2150A-EU
Article number:
12666
Questions? We will be happy to advise you! → Or via our contact form.
Product is End of Life!
New product:
We will find a suitable replacement product for your requirements - please contact our sales department.
Product information "MOXA - NPort W2150A-EU"
The NPort® W2150A and W2250A are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode or Ad-Hoc Mode, the NPort® W2150A and NPort® W2250A can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.
Scope of delivery: MOXA - NPort W2150A-EU
Scope of delivery: MOXA - NPort W2150A-EU
| Connection: | 10 / 100-TX (RL45), Wireless |
|---|---|
| Power Supply: | External |
| Protocol: | RS 232 / 422 / 485 |
| Security: | Enhanced |
| Serial Ports: | 1 Port |
Features
- Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
- Web-based configuration using built-in Ethernet or WLAN
- Enhanced surge protection for serial, LAN, and power
- Remote configuration with HTTPS, SSH
- Secure data access with WEP, WPA, WPA2
- Fast roaming for quick automatic switching between access points
- Offline port buffering and serial data log
- Dual power inputs (1 screw-type power jack, 1 terminal block)
Technical details
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Standards: IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
Configuration Options: Web Console (HTTP/HTTPS), Windows Utility
Management: DHCP Option 82, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, Web Console
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers: Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers: SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API: Android 3.1.x and later
MIB: Device Settings MIB, RFC1213, RFC1317
Security: HTTPS/SSL, User Authentication Management: local database, RADIUS, Secure Protocols: HTTPS (TLSv1.2), SSH, SNMPv3, Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
Time Management: NTP Client, SNTP Client
WLAN Interface
WLAN Standards: 802.11a/b/g/n
Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -91 @ 6 Mbps, Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz): Typ. -92 dBm @ 1 Mbps, Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz): Typ. -91 dBm @ 6 Mbps, Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz), Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz): Typ. -89 dBm @ 6.5 Mbps (20 MHz, Typ. -71 dBm @ 72.2 Mbps (20 MHz), Typ. -85 dBm @ 13.5 Mbps (40 MHz), Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type: DSSS, OFDM
Transmission Distance: Up to 100 meters (in open areas)
Transmission Rate: 802.11a/g: 54 Mbps, 802.11b: 11 Mbps, 802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b: 16±1.5 dBm @ 1 Mbps, 16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g: 16±1.5 dBm @ 6 Mbps, 14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a: 15±1.5 dBm @ 6 Mbps, 14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz): 16 dBm @ 1.5 Mbps (6.5 MHz), 12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz): 15 dBm @ 1.5 Mbps (6.5 MHz), 12 dBm @ 1.5 Mbps (150 MHz)
Frequency Band for CN (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels): 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz operating channels): 2.412 to 2.484 GHz (14 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
Frequency Band for US (20 MHz operating channels): 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels)
Wireless Security: WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
WLAN Modes: Ad-hoc Mode, Infrastructure mode
Antenna Characteristics
Connector: RP-SMA (male)
Antenna Type: Omni-directional
Security Functions
Authentication: Local database, RADIUS
Encryption: HTTPS, AES-128, AES-256, HMAC, RSA-1024, SHA-1, SHA-256, SHA-384
Security Protocols: SNMPv3, SSHv2, HTTPS (TLS 1.2)
Serial Interface
Connector: DB9 male
No. of Ports: 1
Serial Standards: RS-232, RS-422, RS-485
Operation Modes: Real COM mode, TCP Server mode, TCP Client mode, UDP mode, RFC2217 mode, Pair Connection mode, Ethernet Modem mode, Disabled
Baudrate: 50 bps to 921.6 kbps
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: None, RTS/CTS, XON/XOFF
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485: 120 ohms
Surge: 1 kV
Physical Characteristics
Housing: Metal
Installation: Desktop, DIN-rail mounting (with optional kit), Wall mounting
Dimensions (with ears, without antenna): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Dimensions (without ears or antenna): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Weight: 547 g (1.21 lb)
Antenna Length: 109.79 mm (4.32 in)
Environmental Limits
Operating Temperature: 0 to 55°C (32 to 131°F)
Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
