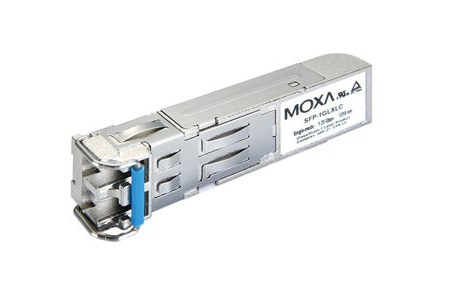

MOXA - SFP-1GLXLC
SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating temperature
Listprice:
€254.00*
Your price - Login
39 pieces available, delivery time In stock, available immediately
MPN:
SFP-1GLXLC
Article number:
10873
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - SFP-1GLXLC"
The SFP-1G Series 1-port Gigabit Ethernet SFP modules are available as optional accessories for a wide range of Moxa Ethernet switches.
Scope of delivery: MOXA - SFP-1GLXLC
Scope of delivery: MOXA - SFP-1GLXLC
Features
- Digital Diagnostic Monitor Function
- -40 to 85°C operating temperature range (T models)
- IEEE 802.3z compliant
- Differential LVPECL inputs and outputs
- TTL signal detect indicator
- Hot pluggable LC duplex connector
- Class 1 laser product, complies with EN 60825-1
Technical details
Ethernet Interface
Ports: 1
Connectors: Duplex LC connector, Simplex LC connector (WDM-type only)
Optical Fiber: Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
Power Consumption: Max. 1 W
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 176°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Ethernet Interface
Ports: 1
Connectors: Duplex LC connector, Simplex LC connector (WDM-type only)
Optical Fiber: Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters
Power Consumption: Max. 1 W
Environmental Limits
Operating Temperature: 0 to 60°C (32 to 176°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
