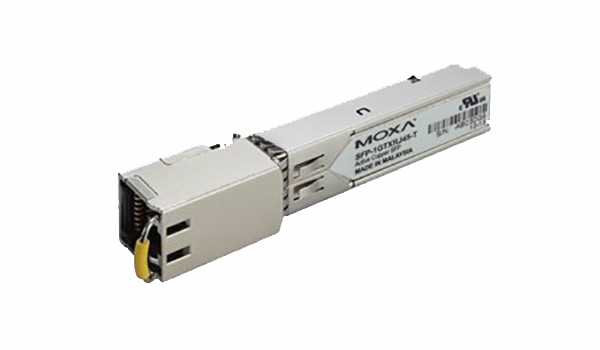

MOXA - SFP-1GTXRJ45-T
SFP module with 1 1000BaseT port with RJ45 connector for 100 m transmission, -40 to 75°C operating temperature
MPN:
SFP-1GTXRJ45-T
Article number:
12700
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - SFP-1GTXRJ45-T"
The SFP-1G Copper Series 1-port Gigabit Ethernet SFP modules are available as optional accessories for a wide range of Moxa Ethernet switches.
Scope of delivery: MOXA - SFP-1GTXRJ45-T
Scope of delivery: MOXA - SFP-1GTXRJ45-T
| Option: | Module |
|---|---|
| Temperature Range: | -40°C to 75°C |
Features
- Compliant with IEEE 802.3, 2002
- Fixed 1000BaseT speed
- Hot Pluggable RJ45 Connector
- TTL signal detection (RX los)
- RoHS compliant and lead free
Technical details
Ethernet Interface
Ports: 1
1000BaseT(X) Ports (RJ45 connector): 1
Note: The port can not be used for Turbo Ring v1, Turbo Ring v2, and Turbo Chain.
Power Parameters
Power Consumption: Max. 1.2 W
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ethernet Interface
Ports: 1
1000BaseT(X) Ports (RJ45 connector): 1
Note: The port can not be used for Turbo Ring v1, Turbo Ring v2, and Turbo Chain.
Power Parameters
Power Consumption: Max. 1.2 W
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
