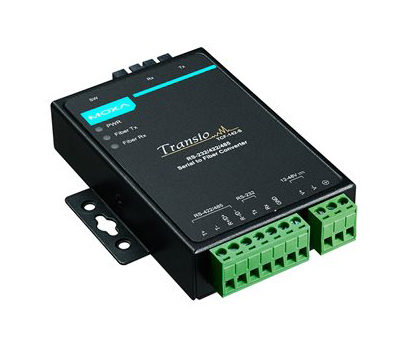

MOXA - TCF-142-M-SC-T
RS-232/422/485 to multi-mode optical fiber media converter with fiber ring support and SC connector, -40 to 75°C operating temperature
MPN:
TCF-142-M-SC-T
Article number:
11124
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - TCF-142-M-SC-T"
The TCF-142 media converters are equipped with a multiple interface circuit that can handle RS-232 or RS-422/485 serial interfaces and multi-mode or single-mode fiber. TCF-142 converters are used to extend serial transmission up to 5 km (TCF-142-M with multi-mode fiber) or up to 40 km (TCF-142-S with single-mode fiber). The TCF-142 converters can be configured to convert either RS-232 signals, or RS-422/485 signals, but not both at the same time.
Scope of delivery: MOXA - TCF-142-M-SC-T
Scope of delivery: MOXA - TCF-142-M-SC-T
| Isolation: | without isolation |
|---|---|
| RS 232/422/485 to x: | Fiber Optic |
Features
Automatic Baudrate Detection
The TCF-142 converters can automatically detect the serial baudrate, which is an extremely convenient feature. Even if a device’s baudrate is changed, the signal will still be transmitted through the media converter without any data loss.
Ring Operation
The TCF-142 converters can be used to connect serial devices to a fiber ring. To form the ring, connect the Tx port of one TCF-142 to the Rx port of a neighboring converter. Once the ring is set up, simply use the DIP switches to configure the TCF-142 converters for ring mode. When one node transmits a signal, the signal travels around the ring until it returns back to the transmitting unit, which then blocks the signal. With the TCF-142, you can set up fiber rings that have a total circumference of up to 100 km.
Automatic Data Direction Control (ADDC®)
ADDC® is a patented hardware data flow solution developed by Moxa to handle RS-485 data direction control. ADDC® senses and controls RS-485 data direction automatically, making it unnecessary to use the handshaking signal.
Automatic Baudrate Detection
The TCF-142 converters can automatically detect the serial baudrate, which is an extremely convenient feature. Even if a device’s baudrate is changed, the signal will still be transmitted through the media converter without any data loss.
Ring Operation
The TCF-142 converters can be used to connect serial devices to a fiber ring. To form the ring, connect the Tx port of one TCF-142 to the Rx port of a neighboring converter. Once the ring is set up, simply use the DIP switches to configure the TCF-142 converters for ring mode. When one node transmits a signal, the signal travels around the ring until it returns back to the transmitting unit, which then blocks the signal. With the TCF-142, you can set up fiber rings that have a total circumference of up to 100 km.
Automatic Data Direction Control (ADDC®)
ADDC® is a patented hardware data flow solution developed by Moxa to handle RS-485 data direction control. ADDC® senses and controls RS-485 data direction automatically, making it unnecessary to use the handshaking signal.
Technical details
Serial Interface
No. of Ports: 2
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control: ADDC® (automatic data direction control) for RS-485
Optical Fiber
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
Connector: Multi-mode SC connector
Latency: 300 ns
Serial Signals
RS-232: TxD, RxD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Power Parameters
No. of Power Inputs: 1
Input Current: 70 to 140 mA @ 12 to 48 VDC
Input Voltage: 12 to 48 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 70 to 140 mA @ 12 to 48 VDC
Reverse Polarity Protection: Supported
Physical Characteristics
IP Rating: IP30
Housing: Metal
Dimensions (with ears): 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Dimensions (without ears): 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
Weight: 320 g (0.71 lb)
Installation: Wall mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Serial Interface
No. of Ports: 2
Serial Standards: RS-232, RS-422, RS-485
Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
Flow Control: ADDC® (automatic data direction control) for RS-485
Optical Fiber
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control: ADDC® (automatic data direction control)
Terminator for RS-485: N/A, 120 ohms, 120 kilo-ohms
Connector: Multi-mode SC connector
Latency: 300 ns
Serial Signals
RS-232: TxD, RxD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Power Parameters
No. of Power Inputs: 1
Input Current: 70 to 140 mA @ 12 to 48 VDC
Input Voltage: 12 to 48 VDC
Overload Current Protection: Supported
Power Connector: Terminal block
Power Consumption: 70 to 140 mA @ 12 to 48 VDC
Reverse Polarity Protection: Supported
Physical Characteristics
IP Rating: IP30
Housing: Metal
Dimensions (with ears): 90 x 100 x 22 mm (3.54 x 3.94 x 0.87 in)
Dimensions (without ears): 67 x 100 x 22 mm (2.64 x 3.94 x 0.87 in)
Weight: 320 g (0.71 lb)
Installation: Wall mounting
Environmental Limits
Operating Temperature: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
