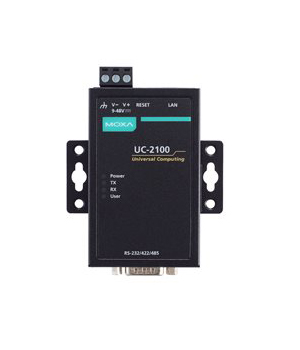

MOXA - UC-2101-LX
Mini RISC-based embedded computer with 600 MHz processor, 1 serial port and 1 LAN port
MPN:
UC-2101-LX
Article number:
14299
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - UC-2101-LX"
The UC-2100 Series computing platform is designed for embedded data acquisition and processing applications. The computer comes with up to two software selectable RS-232/422/485 full-signal serial ports and single or dual Ethernet ports. This palm-sized series of Arm-based computing platforms includes a variety of models for a wide range of interface requirements, such as single or dual serial and Ethernet ports, Gigabit Ethernet, and wireless connections. These versatile communication capabilities allow users to efficiently adapt the UC‑2100 for a variety of complex communications solutions.
The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.
Scope of delivery: MOXA - UC-2101-LX
The UC-2100 Series has a built-in Cortex-A8 Arm-based processor that has been optimized for a variety of industrial solutions. With its flexible interface options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites and is a useful communication platform for many other large-scale deployments. Models designed for wide temperature applications are available for use in extreme environments such as those found in the oil and gas industry. Furthermore, all models use the Moxa Industrial Linux platform, which provides optimized software features and long-term support.
Scope of delivery: MOXA - UC-2101-LX
Features
- Armv7 Cortex-A8 600-1000 MHz processor
- Palm-sized form factor, 50 x 80 x 28 mm
- Moxa Industrial Linux with 10-year superior long-term support
- MXview support for centralized monitoring of devices and computing status
- Unified APIs and push-based communication for retrieving data only when needed
- 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
- Gigabit Ethernet supported (UC-2112)
- Up to 2 software-selectable RS-232/422/485 ports supporting all signals
- Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
- -40 to 75°C wide-temperature model available with hazardous locations certification
Technical details
Computer
CPU: Armv7 Cortex-A8 600 MHz
DRAM: 256 MB DDR3
Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
Storage Pre-installed: 8 GB eMMC
Computer Interface
Ethernet Ports: Auto-sensing 10/100 Mbps ports (RJ45 connector) x 1
Serial Ports: RS-232/422/485 ports x 1, software selectable (DB9 male)
Console Port: RS-232 (TxD, RxD, GND), 4-pin header output (115200, n, 8, 1)
Buttons: Reset button, DIP switch for serial port configuration
Ethernet Interface
Magnetic Isolation Protection: 1.5 kV (built-in)
Serial Interface
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: None, Even, Odd, Space, Mark
Flow Control: RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Baudrate: 50 bps to 921.6 kbps
Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
ESD Protection: 4 kV, for all signals
Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
LED Indicators
System: Power x 1
LAN: 2 per port (10/100 Mbps)
Serial: 2 per port (Tx, Rx)
User Programmable: User x 1
Physical Characteristics
Housing: Metal
Installation: Wall mounting, DIN-rail mounting (with optional kit)
Weight: 190 g (0.42 lb)
Dimensions (with ears): 73 x 80 x 28 mm (2.87 x 3.15 x 1.10 in)
Dimensions (without ears): 50 x 80 x 28 mm (1.97 x 3.15 x 1.10 in)
Environmental Limits
Operating Temperature: -10 to 60°C (14 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Shock: IEC 60068-2-27
Vibration: 2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis (without USB devices attached)
Power Parameters
Input Voltage: 9 to 48 VDC
Input Current: 0.45 A @ 9 VDC, 0.084 A @ 48 VDC
Power Consumption: 4 W
MTBF
Time: 1,360,496 hrs
Standards: Telcordia (Bellcore) Standard TR/SR
Reliability
Alert Tools: External RTC (real-time clock)
Automatic Reboot Trigger: External WDT (watchdog timer)
