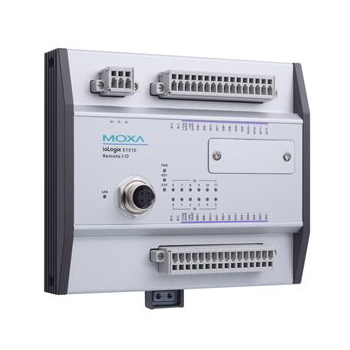

MOXA - ioLogik E1510-M12-T
Rugged I/O, 12 DIs, -40 to 85°C operating temperature
MPN:
ioLogik E1510-M12-T
Article number:
12679
Questions? We will be happy to advise you! → Or via our contact form.
Product information "MOXA - ioLogik E1510-M12-T"
The ioLogik E1500 Series Ethernet Remote I/O devices have a ruggedized aluminum housing, and are compliant with EN 50121-3-2, EN 50121-4, and essential sections of EN 50155 standard, which are essential for electronic equipment used in rolling stock applications. This rugged platform also features a wide operating temperature range of -40 to 85°C to deliver consistent performance even in harsh environments.
Scope of delivery: MOXA - ioLogik E1510-M12-T
Scope of delivery: MOXA - ioLogik E1510-M12-T
| Certifications: | E-Mark, EN 50121, EN 50155 |
|---|---|
| Interface: | Ethernet |
| Option: | M12 port |
| Protocol: | ModBus, TCP, UDP |
| Temperature Range: | Extended Temperature Range |
Features
Ruggedly Designed for Monitoring Rolling Stock
The ioLogik E1500 Series Ethernet remote I/O devices have a durable aluminum housing and are compliant with EN 50121-4 and a portion of EN 50155 specifications required for electronic equipment used in railway applications. The ioLogik E1500 design strictly conforms to EN standards, including not only EMC requirements but also with regards to shock, vibration, extended temperature range, humidity, and power supply variations.
Channel-to-Channel Isolation
With this topology, I/O channels on the ioLogik E1500 are individually isolated from one another to ensure that data communication is highly stable. For example, a lightning strike that affects one channel will not affect devices connected to other channels on the same ioLogik E1500.
Application: Enhanced Efficiency for Remote Monitoring on Rolling Stock
The railway I/O module is an EN 50155/50121 remote Ethernet I/O device for use on rolling stock. It features an anti-vibration design, channel isolation, and operates reliably in temperatures ranging from -40 to 85°C, making it the ideal solution for data acquisition on rolling stock. Capable of both monitoring system status and triggering I/O events, this railway I/O is a great choice for simultaneously enhancing system reliability and maintaining efficiency in rolling stock environments.
Ruggedly Designed for Monitoring Rolling Stock
The ioLogik E1500 Series Ethernet remote I/O devices have a durable aluminum housing and are compliant with EN 50121-4 and a portion of EN 50155 specifications required for electronic equipment used in railway applications. The ioLogik E1500 design strictly conforms to EN standards, including not only EMC requirements but also with regards to shock, vibration, extended temperature range, humidity, and power supply variations.
Channel-to-Channel Isolation
With this topology, I/O channels on the ioLogik E1500 are individually isolated from one another to ensure that data communication is highly stable. For example, a lightning strike that affects one channel will not affect devices connected to other channels on the same ioLogik E1500.
Application: Enhanced Efficiency for Remote Monitoring on Rolling Stock
The railway I/O module is an EN 50155/50121 remote Ethernet I/O device for use on rolling stock. It features an anti-vibration design, channel isolation, and operates reliably in temperatures ranging from -40 to 85°C, making it the ideal solution for data acquisition on rolling stock. Capable of both monitoring system status and triggering I/O events, this railway I/O is a great choice for simultaneously enhancing system reliability and maintaining efficiency in rolling stock environments.
Technical details
Input/Output Interface
Digital Input Channels: 12
Isolation: 3k VDC or 2k Vrms
Buttons: Reset button
Digital Inputs
Connector: Spring-type Euroblock terminal
Counter Frequency: 250 Hz
Digital Filtering Time Interval: Software configurable
Dry Contact: On: short to GND, Off: open
I/O Mode: DI or event counter
Sensor Type: Dry contact, Wet Contact (NPN or PNP)
Wet Contact (DI to GND): On: 10 to 30 VDC, Off: 0 to 3 VDC
Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP), Windows Utility (ioSearch)
Industrial Protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library
Management: BOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP
LED Interface
LED Indicators: PWR, RDY, EXP, LAN, DI channels
Modbus TCP
Mode: Server
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 150 mA @ 24 VDC
Physical Characteristics
Housing: Aluminum
Dimensions: 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
Weight: 825 g (1.82 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 16 to 26 AWG
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Storage Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
Input/Output Interface
Digital Input Channels: 12
Isolation: 3k VDC or 2k Vrms
Buttons: Reset button
Digital Inputs
Connector: Spring-type Euroblock terminal
Counter Frequency: 250 Hz
Digital Filtering Time Interval: Software configurable
Dry Contact: On: short to GND, Off: open
I/O Mode: DI or event counter
Sensor Type: Dry contact, Wet Contact (NPN or PNP)
Wet Contact (DI to GND): On: 10 to 30 VDC, Off: 0 to 3 VDC
Ethernet Interface
10/100BaseT(X) Ports (M12 D-coded 4-pin female connector): 1
Magnetic Isolation Protection: 1.5 kV (built-in)
Ethernet Software Features
Configuration Options: Web Console (HTTP), Windows Utility (ioSearch)
Industrial Protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library
Management: BOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP
LED Interface
LED Indicators: PWR, RDY, EXP, LAN, DI channels
Modbus TCP
Mode: Server
Functions Supported: 1, 2, 3, 4, 5, 6, 15, 16
Power Parameters
Power Connector: Spring-type Euroblock terminal
No. of Power Inputs: 1
Input Voltage: 12 to 48 VDC
Power Consumption: 150 mA @ 24 VDC
Physical Characteristics
Housing: Aluminum
Dimensions: 144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
Weight: 825 g (1.82 lb)
Installation: DIN-rail mounting, Wall mounting (with optional kit)
Wiring: I/O cable, 16 to 26 AWG; Power cable, 16 to 26 AWG
Environmental Limits
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: 2000 m
Storage Temperature: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
