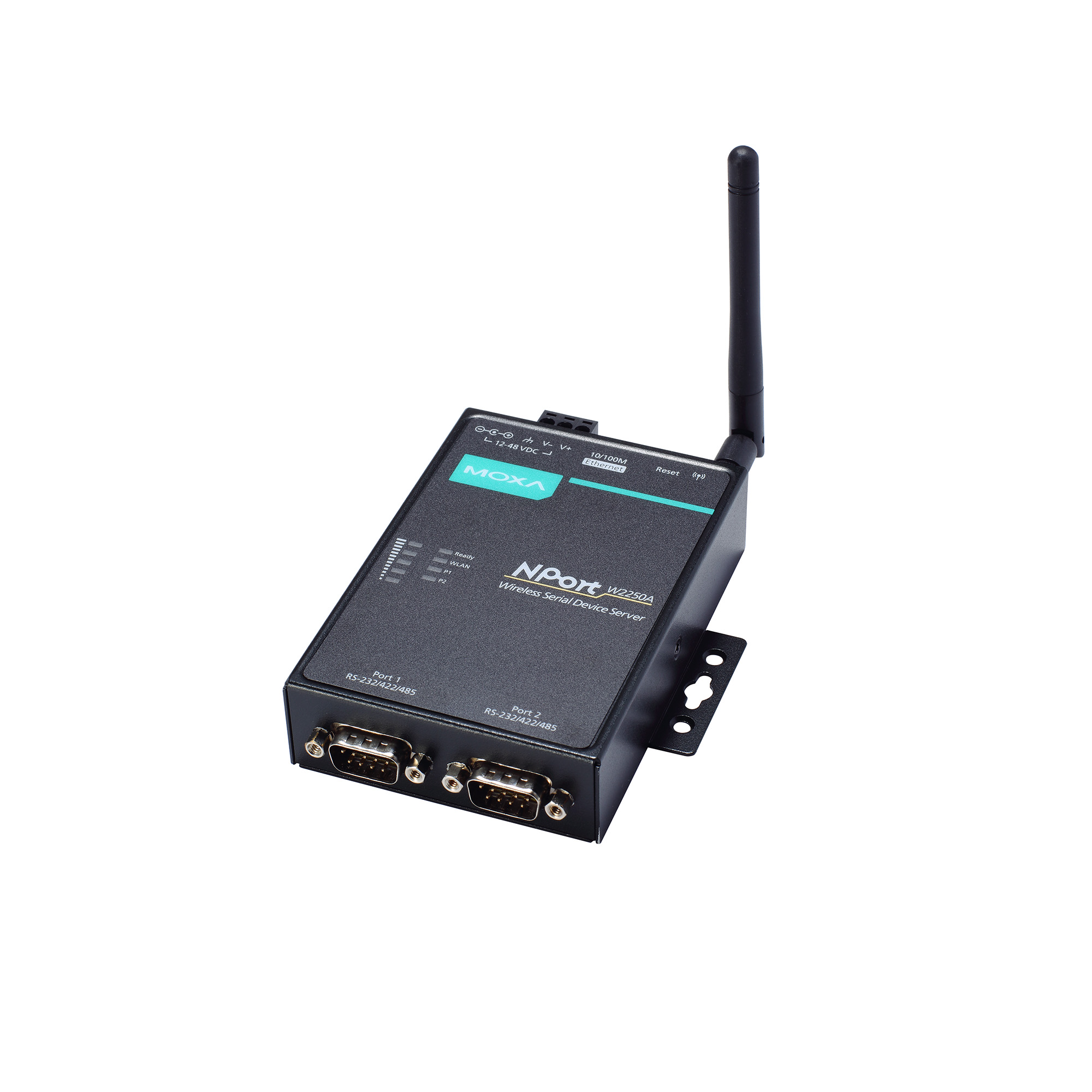

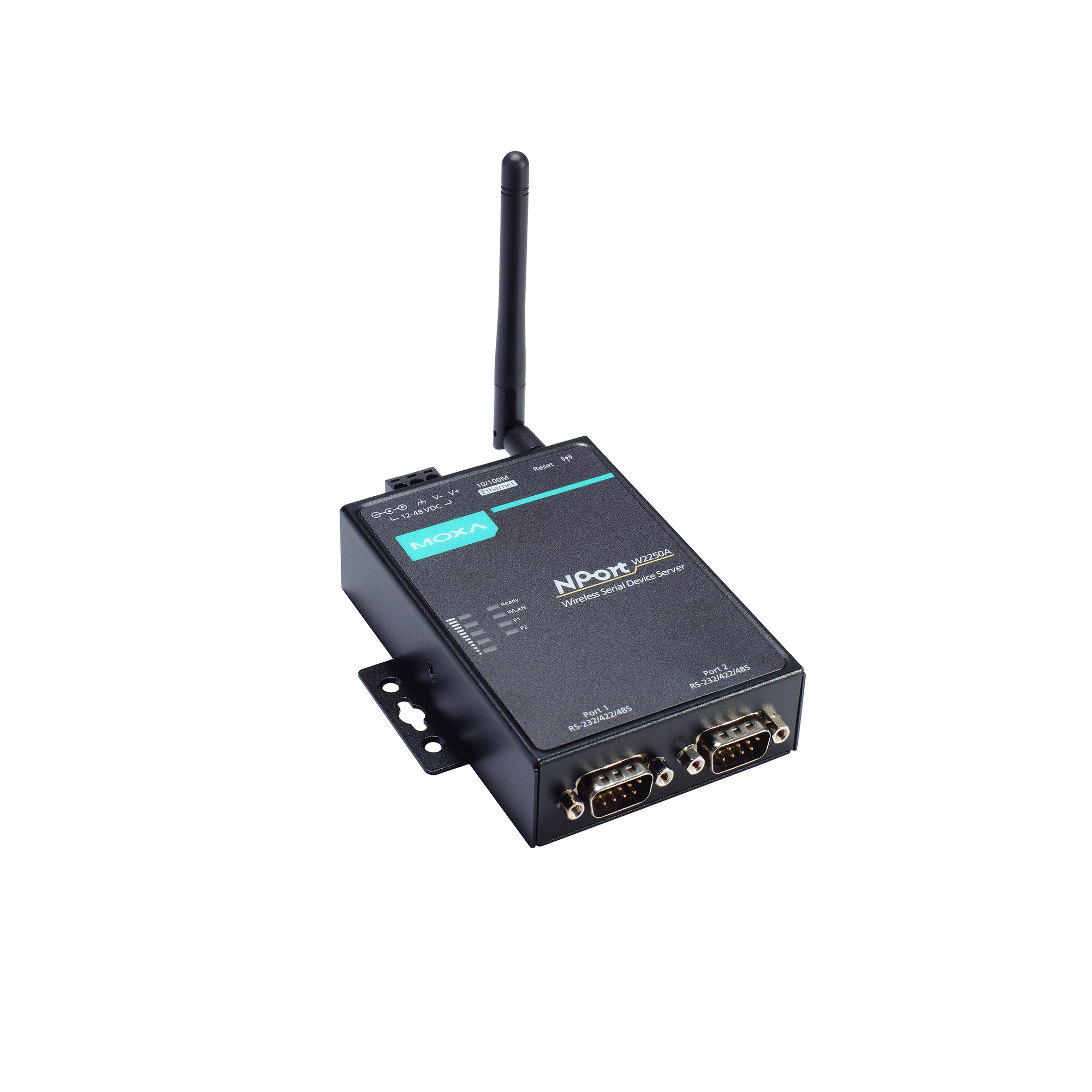

Moxa - NPort W2250A-W4-EU
2-port serial-to-Wi-Fi (802.11a/b/g/n) device servers with a wireless client
MPN:
NPort W2250A-W4-EU
Article number:
14719
Questions? We will be happy to advise you! → Or via our contact form.
Product information "Moxa - NPort W2250A-W4-EU"
The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort® W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.
PACKAGE CONTENTS:
- 1 x NPort W2150A-W4 Series device server
- 1 x power adapter, suitable for your region (standard temp. models only)
- 1 x 2.4/5 GHz antenna
- 1 x quick installation guide
- 1 x warranty card
| Connection: | 10 / 100-TX (RL45), Wireless |
|---|---|
| Power Supply: | External |
| Protocol: | RS 232 / 422 / 485 |
| Security: | Enhanced |
| Serial Ports: | 2 Ports |
Features
- Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
- Web-based configuration using built-in Ethernet or WLAN
- Secure Boot that only allows Moxa-authorized firmware to run on devices
- Remote configuration with HTTPS (TLS 1.3), SSH
- Secure data access with WEP, WPA, WPA2
- WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
- Fast roaming for quick automatic switching between access points
- Offline port buffering and serial data log
- Enhanced surge protection for serial, LAN, and power
- Dual power inputs (1 screw-type power jack, 1 terminal block)
Specifications
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 1
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Standards:
- IEEE 802.3 for 10BaseT
- IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
- Configuration Options:
- T
- Web Console (HTTP/HTTPS)/li>
- Windows Utility
- Management:
- DHCP Option 82
- HTTP
- HTTPS
- IPv4
- SMTP
- SNMPv1/v2c/v3
- Syslog
- Telnet
- Web Console
- Windows Real COM Drivers:
- Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
- Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
- Windows Embedded CE 5.0/6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Fixed TTY Drivers:
- macOS Versions: 10.12 to 10.15, 11.x
- SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.
- x, HP-UX 11i, Mac OS X
- Arm®-based Platform Support: Linux kernel 5.x/4.x
- Virtual Machine:
- VMWare ESXi (Windows 11/10)
- VMware Fusion (Windows on macOS 10.12 to 11.x)
- Parallels Desktop (Windows on macOS 10.12 to 11.x)
- Android API: Android 3.1.x and later
- MIB:
- Device Settings MIB
- RFC1213, RFC1317
- Security:
- HTTPS/SSL
- User Authentication Management: local database, RADIUS
- Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3
- Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
- Time Managemen:
- NTP Client
- SNTP Client
WLAN Interface
- WLAN Standards: 802.11a/b/g/n
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz):
- Typ. -91 @ 6 Mbps
- Typ. -74 @ 54 Mbps
- Receiver Sensitivity for 802.11b (measured at 2.437 GHz):
- Typ. -92 dBm @ 1 Mbps
- Typ. -84 dBm @ 11 Mbps
- Receiver Sensitivity for 802.11g (measured at 2.437 GHz):
- Typ. -91 dBm @ 6 Mbps
- Typ. -73 dBm @ 54 Mbps
- Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz):
- Typ. -89 dBm @ 6.5 Mbps (20 MHz)
- Typ. -71 dBm @ 72.2 Mbps (20 MHz)
- Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz):
- Typ. -89 dBm @ 6.5 Mbps (20 MHz)
- Typ. -71 dBm @ 72.2 Mbps (20 MHz)
- Typ. -85 dBm @ 13.5 Mbps (40 MHz)
- Typ. -67 dBm @ 150 Mbps (40 MHz)
- Modulation Type:
- DSSS
- OFDM
- Transmission Distance: Up to 100 meters (in open areas)
- Transmission Rate:
- 802.11a/g: 54 Mbps
- 802.11b: 11 Mbps
- 802.11n: 6.5 to 150 Mbps
- Transmitter Power for 802.11b :
- 16±1.5 dBm @ 1 Mbps
- 16±1.5 dBm @ 11 Mbps
- Transmitter Power for 802.11g:
- 16±1.5 dBm @ 6 Mbps
- 14±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11a:
- 15±1.5 dBm @ 6 Mbps
- 14±1.5 dBm @ 54 Mbps
- Transmitter Power for 802.11n (2.4 GHz):
- 16 dBm @ 1.5 Mbps (6.5 MHz)
- 12 dBm @ 1.5 Mbps (72.2 MHz)
- Transmitter Power for 802.11n (5 GHz):
- 15 dBm @ 1.5 Mbps (6.5 MHz)
- 12 dBm @ 1.5 Mbps (150 MHz)
- Frequency Band for CN (20 MHz operating channels):
- 2.412 to 2.472 GHz (13 channels)
- 5.180 to 5.240 GHz (4 channels)
- 5.260 to 5.320 GHz (4 channels)
- 5.745 to 5.825 GHz (5 channels)
- Frequency Band for EU (20 MHz operating channels):
- 2.412 to 2.472 GHz (13 channels)
- 5.180 to 5.240 GHz (4 channels)
- 5.260 to 5.320 GHz (4 channels)
- 5.500 to 5.700 GHz (11 channels)
- Frequency Band for JP (20 MHz operating channels):
- 2.412 to 2.472 GHz (13 channels)
- 5.180 to 5.240 GHz (4 channels)
- 5.260 to 5.320 GHz (4 channels)
- 5.500 to 5.700 GHz (11 channels)
- Frequency Band for US (20 MHz operating channels):
- 2.412 to 2.462 GHz (11 channels)
- 5.180 to 5.240 GHz (4 channels)
- 5.260 to 5.320 GHz (4 channels)
- 5.500 to 5.700 GHz (11 channels)
- Wireless Security:
- WEP encryption (64-bit and 128-bit)
- WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
- WPA/WPA2-Personal
- WLAN Modes: Infrastructure mode
Antenna Characteristics
- Connector: RP-SMA (male)
- Antenna Type: Omni-directiona
Security Functions
- Authentication:
- Local database
- RADIUS
- Encryption:
- AES-128/li>
- AES-256
- HMAC
- RSA-1024
- SHA-1
- SHA-256
- SHA-384
- Security Protocols:
- SNMPv3
- SSHv2
- HTTPS (TLS 1.3)
- Wireless Security:
- WEP
- WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3)
- WPA/WPA2-Personal
- Hardware-based Security: Secure Boot
Serial Interface
- Connector: DB9 male
- No. of Ports: 2
- Serial Standards:
- RS-232
- RS-422
- RS-485
- Operation Modes:
- Real COM mode
- TCP Server mode
- TCP Client mode
- UDP mode
- RFC2217 mode
- Pair Connection mode
- Ethernet Modem mode
- Disabled
- Baudrate: 300 bps to 921.6 kbps
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control:
- None
- RTS/CTS
- XON/XOFF
- RS-485 Data Direction Control: ADDC® (automatic data direction control)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Surge 1 kV
Physical Characteristics
- Housing: Metal
- Installation:
- Desktop
- DIN-rail mounting (with optional kit)
- Wall mounting
- Dimensions (with ears, without antenna): 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
- Dimensions (without ears or antenna): 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
- Weight: 191 g (0.42 lb)
- Antenna Length: 108 mm (4.25 in)
Environmental Limits
- Operating Temperature:
- Standard Models: 0 to 55°C (32 to 131°F)
- Wide Temp. Models: -40 to 75°C (-40 to 167°F)
- Storage Temperature (package included): -40 to 75°C (-40 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Parameters
- Input Current: 455 mA @ 12 VDC
- Input Voltage: 12 to 48 VDC
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
- IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
- IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
- IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
- IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
- IEC 61000-4-8 PFMF
- IEC 61000-4-11
- Radio Frequency: CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC
- Safety:
- UL 62368-1
- IEC 62368-1
Reliability
- Alert Tools: RTC (real-time clock)
- Automatic Reboot Trigger: Built-in WDT
MTBF
- Time: 1,187,539 hrs
- Standards: Telcordia SR332
Warranty
- Warranty Period: 5 years
