Moxa - PWR-12150-WPEU-S2

AC power adapters
Skip image gallery

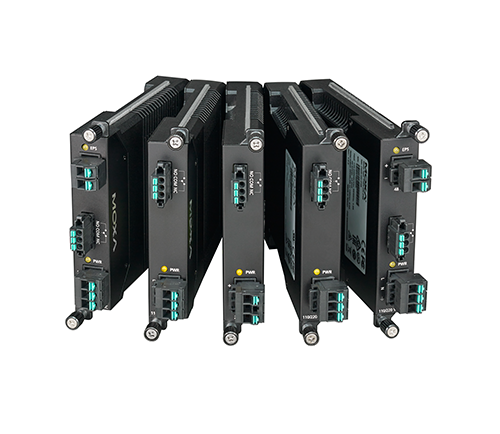

Moxa - PWR-12150-WPEU-S2
Listprice:

€31.00*

15 pieces available, delivery time In stock, available immediately

MPN: PWR-12150-WPEU-S2
Article number: 14501
Questions? We will be happy to advise you! → Or via our contact form.

Product information "Moxa - PWR-12150-WPEU-S2"

The power adapters in Moxa’s Power Adapter Series provide a reliable power source for many Moxa products.


PACKAGE CONTENTS: PWR-12150-WPEU-S2

Device: Accessories

Features

  • IEEE 802.3af-compliant PoE power device equipment
  • Speedy 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile TCP and UDP operation modes

Technical Specifications


Input Power Parameters

  • Voltage Range: 100 to 240 VAC (50 to 60 Hz)

Power Parameters

  • Input Plug Type:
    • PWR-AU Models: Australia plug type
    • PWR-CN Models: China plug type
    • PWR-EU Models: Europe plug type
    • PWR-UK Models: United Kingdom plug type
    • PWR-USJP Models: United States/Japan plug type
    • PWR-KR Models: Korea plug type
    • PWR-24250-DT-S1: Desktop
  • Output Power Rating:
    • PWR-12050 Models: 0.5 A @ 12 VDC
    • PWR-12150 Models: 1.5 A @ 12 VDC
    • PWR-12300 Models: 3 A @ 12 VDC
    • PWR-24250-DT-S1: 2.5 A @ 24 VDC
  • Output Plug Type:
    • PWR-12050-S1 Models: S-Type 5.5/2.1/7.5
    • PWR-12050-S2 Models: S-Type 5.5/2.1/9.5
    • PWR-12150-S2 Models: S-Type 5.5/2.1/9.5
    • PWR-12300 Models: S-Type 5.5/2.1/7.5
    • PWR-12150-SA-T Models: L-Type 5.5/2.1/7.5
    • PWR-24250-DT-S1: S-Type 5.5/2.1/9.5
    • Outer Diameter: 5.5 ± 0.1 mm (0.22 ± 0.004 in)
    • Inner Diameter: 2.1 ± 0.1 mm (0.08 ± 0.004 in)

Physical Characteristics

  • Dimensions:
    • PWR-12050-AU-S1: 67.9 x 33.5 x 39.4 mm (2.67 x 1.32 x 1.55 in)
    • PWR-12050-CN-S1: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    • PWR-12050-EU-S1: 68.0 x 33.0 x 55.0 mm (2.68 x 1.30 x 2.17 in)
    • PWR-12050-KR-S1: 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in)
    • PWR-12050-UK-S1: 67.8 x 50.3 x 43.0 mm (2.67 x 1.98 x 1.69 in)
    • PWR-12050-USJP-S1: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    • PWR-12050-AU-S2: 67.9 x 39.4 x 42.5 mm (2.67 x 1.55 x 1.67 in)
    • PWR-12050-CN-S2: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    • PWR-12050-EU-S2: 68.0 x 33.0 x 55.0 mm (2.68 x 1.30 x 2.17 in)
    • PWR-12050-KR-S2: 67.7 x 33.0 x 55.1 mm (2.67 x 1.30 x 2.17 in)
    • PWR-12050-UK-S2: 67.9 x 50.3 x 43.0 mm (2.67 x 1.98 x 1.69 in)
    • PWR-12050-USJP-S2: 67.8 x 33.0 x 39.0 mm (2.67 x 1.30 x 1.54 in)
    • PWR-12150-WPAU-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPCN-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPEU-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12300-WPUK-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPUSJP-S2: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPAU-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPCN-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPEU-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPKR-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPUK-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12150-WPUSJP-S4: 80.5 x 39.1 x 56.4 mm (3.17 x 1.54 x 2.22 in)
    • PWR-12300-WPAU-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    • PWR-12300-WPCN-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    • PWR-12300-WPEU-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    • PWR-12300-WPUK-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    • PWR-12300-WPUSJP-S2: 93.0 x 50.0 x 39.6 mm (3.66 x 1.97 x 1.56 in)
    • PWR-12150-AU-SA-T: 41 x 73.9 x 89.5 mm (1.61 x 2.91 x 3.52 in)
    • PWR-12150-CN-SA-T: 32 x 60 x 88 mm (1.26 x 2.36 x 3.46 in)
    • PWR-12150-EU-SA-T: 32 x 85.3 x 88 mm (1.26 x 3.36 x 3.46 in)
    • PWR-12150-UK-SA-T: 50 x 91 x 82.5 mm (1.97 x 3.58 x 3.25 in)
    • PWR-12150-USJP-SA-T: 32 x 70.3 x 88 mm (1.26 x 2.77 x 3.46 in)
    • PWR-24250-DT-S1: 133 x 59.1 x 34.4 mm (5.24 x 2.33 x 1.35 in)
  • Weight:
    • PWR-12050 Models: 71~87 g ( 0.16 ~ 0.19 lb )
    • PWR-12150 Models: 200 g ( 0.44 lb )
    • PWR-12150-S2 Models: 115 g ( 0.25 lb)
    • PWR-12300-S1 Models: 163 g ( 0.36 lb )
    • PWR-24250-DT-S1: 330 g (0.73 lb)
  • Cord Length:
    • PWR-12050 Models: 1500±100 mm (59.06±3.94 in)
    • PWR-12150 Models: 1500±100 mm (59.06±3.94 in)
    • PWR-12300 Models: 1500±100 mm (59.06±3.94 in)
    • PWR-24250-DT-S1: 1500±100 mm (59.06±3.94 in)

Environmental Limits

  • Operating Temperature:
    • Standard Models: 0 to 40°C (32 to 104°F)
    • Wide Temp. Models: -40 to 75°C (-40 to 167°F)
  • Storage Temperature:
    • Standard Models: -20 to 70°C (-4 to 158°F)
    • Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Standards and Certifications

  • Safety:
    • PWR-12050-AU Models: RCM
    • PWR-12050-CN Models: CCC
    • PWR-12050-EU Models: CE/GS
    • PWR-12050-KR Models: KCC
    • PWR-12050-UK Models: CE
    • PWR-12050-USJP Models: FCC/UL/PSE
    • PWR-12150 Models: CE/FCC/UL/RCM/PSE/CCC/GS/KCC
    • PWR-12300 Models: CE/FCC/UL/RCM/PSE/CCC/GS
    • PWR-12150-AU-SA-T: RCM
    • PWR-12150-CN-SA-T: CCC
    • PWR-12150-EU-SA-T: TUV/CE/GS
    • PWR-12150-UK-SA-T: CE
    • PWR-12150-USJP-SA-T: FCC/UL/PSE
    • PWR-24250-DT-S1: CE/FCC/UL/RCM/PSE/CCC/GS

Warranty

  • Warranty Period: 1.5 years
  • Details: See www.moxa.com/warranty
